Single Arm Series 80W | 30AH Lithium | 10W LED - Solar Street Light

Australian high quality solar street light designed to last 20 years. Built with die cast aluminium & 316 marine grade stainless steel.

This light is the least heavy of our range weighing 16.3kg. It can fit on a light duty pole.

We have added the single arm light head that is found on most street lights in Australia.

This solar street light can provide P4 Class Lighting for

Paths and walkways
Car parks
Caravan parks
Schools

Specifications

80W Solar Panel
30AH (384Wh) LiFePO4 Lithium Battery
MPPT controller
10w LED
Movement Sensor Option

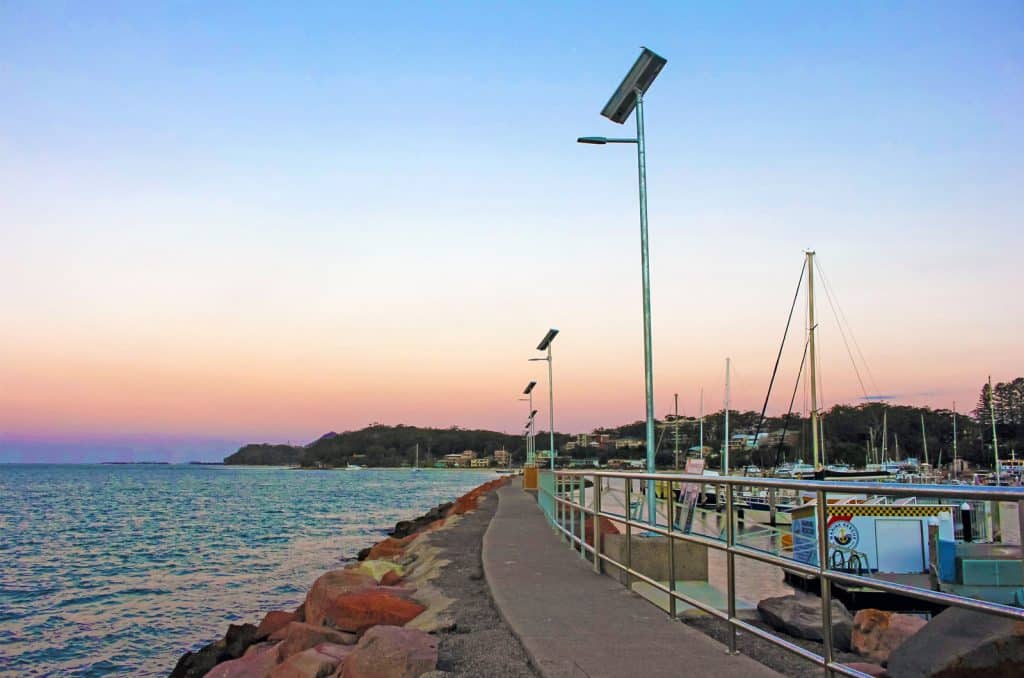

Solar Street Lights - Single Arm - 80W 30Ah 10W LED

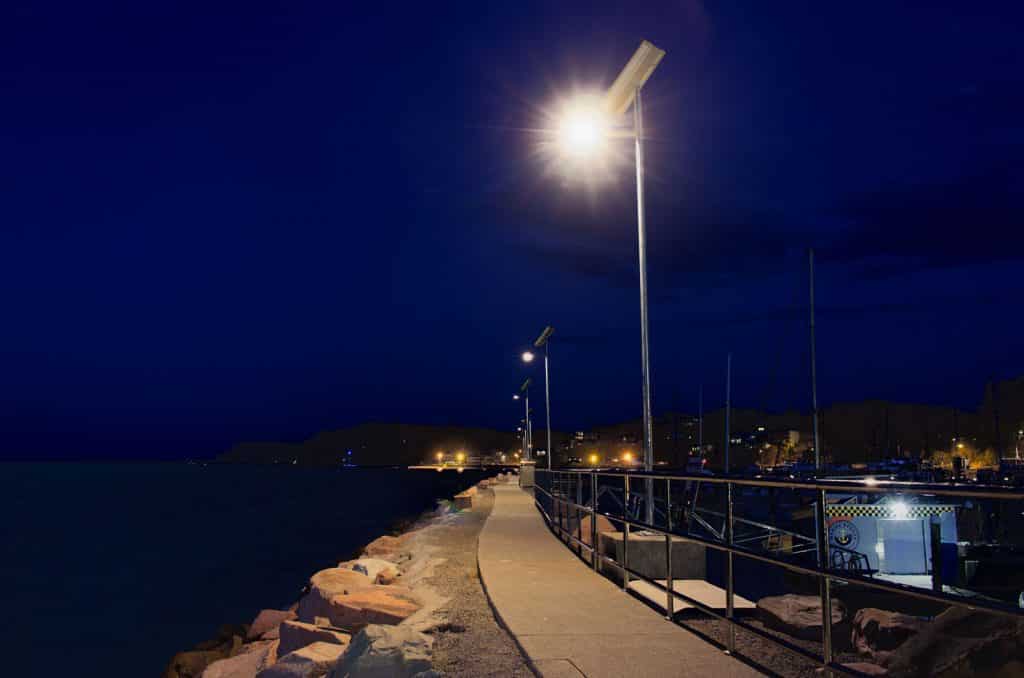

Solar Street Lights - Single Arm - 80W 30Ah 10W LED on at night

Solar Street Lights - Single Arm - 80W 30Ah 10W LED with a pelican

Solar Street Lights - Single Arm - 80W 30Ah 10W LED with bird spikes and pelican

Day | Night Comparison

Solar light installation at a marina in NSW using a 10W warm white 300k Nichia LED

Coastal Corrosion Prevention

MPPT Controller

For our products, we use an MPPT Controller. This allows us to utilise 100% of the available power from our 80W Solar Panel.

if we were to use a standard PWM controller we would utilise only 64.8% of the available power of the 80W Solar Panel.

MPPT Controller

By using an MPPT Controller we are able utilise 100% of the available power from our Solar Panel.

Adjustable Brightness

We can adjust the brightness to conserve energy when there is low activity

Aluminium Housing

All our Solar Lights are encased in aluminium and 316 marine grade stainless steel screws

3 Year Warranty

All our Solar Lights come with a 3 year warranty

Specifications

Solar Panel Specifications

Solar Panel

80W / 18V / 3.89A

Type

Monocrystalline

Cell Efficiency

0.2

Operating Temperature

-40~50˚C

Hail Load

(60m/s (200kg / m2)

Tilt Range

0° – 90°

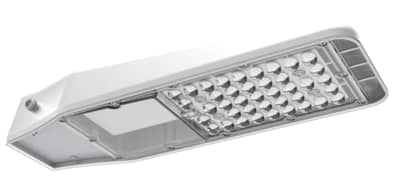

LED Specification

LED Chip

Nichia

Beam Angle

60° x 150° Asymmetrical

Total Lumens

1,376 lm

Light Source

9.5W

Light Efficiency (Flux)

144.8lm/W

Max Lux at 4 Meters

25 lux

Colour Temperature

3,700k – 4,300k

IP Rating

IP65

CRI

Life

> 50,000 hours

Movement Sensor

Optional – Infrared / Microwave

Dimensions

350 x 120 x 75 mm

Diameter For Side Entry

55 mm best fit for 48 mm spigot

Battery Specifications

Lithium LiFePO4 Battery Size (12.8V)

30AH / 384 WH

Work Time – Bright Mode

40 Hours @ 9.5W

Average Battery Charge at Dawn

69%

Battery Charge Time 0-100%

5 Hours

Charging Temperature

0~45˚C

Discharging Temperature

-10~60˚C

Storage Temperature < 1 Year

-20~25˚C

Physical Specifications

Solar System Housing

Aluminium

Solar Panel Package Size

1050 x 590 x 140 mm

Solar System Size

990 x 495 x 120 mm

Top Spigot Pole Size

60 mm

Total Weight

16.3 KG

Pole

Hot Dipped Galvanised

Pole Height

Up to 6,500 mm

Pole OD

90 mm

Single Arm Length

300 – 500 mm

Single Arm OD Spigot

50 mm

Luminaire Distance from Ground

3,000 – 6,000 mm

Pole Footings

450 x 450 x 1000 mm Rag Bolt with Lowerable Hinge

Australian

You can rest assured that you'll be getting the best service from your local Australian provider

Lithium Battery

Once our batteries charge for the day, we let them rest until sundown.

Designed To Last

With Solar Street Lights Australia, you can expect that they will last for over 20 years

Easy Installation

For customer convenience, our solar street lights are easy to install.

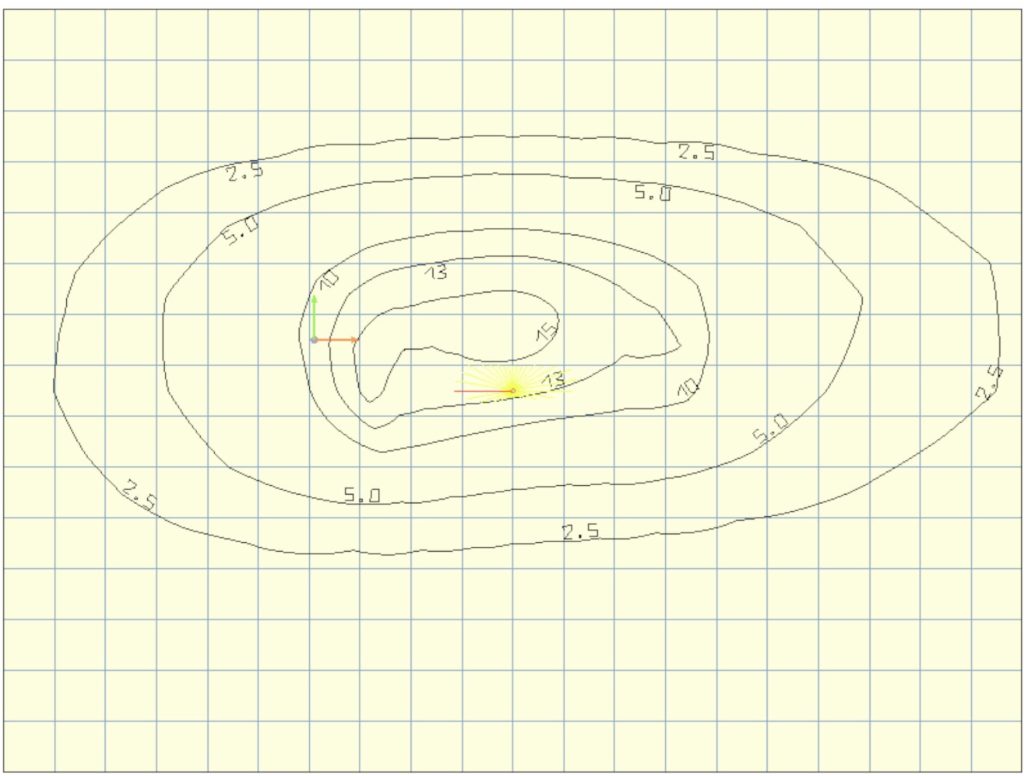

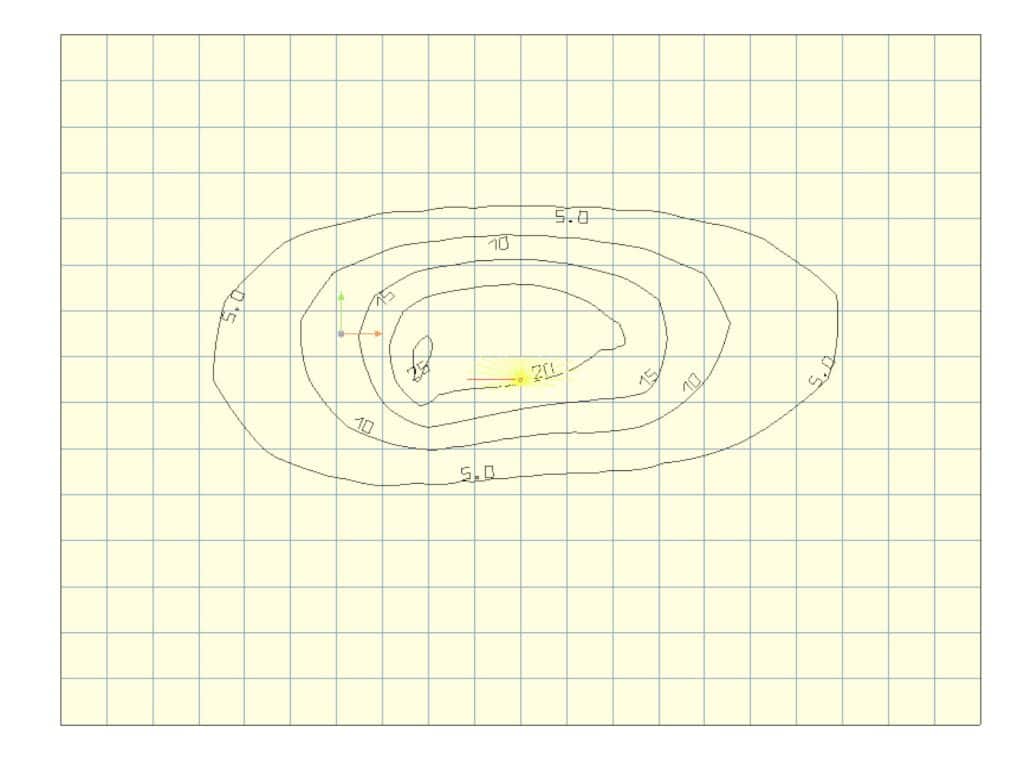

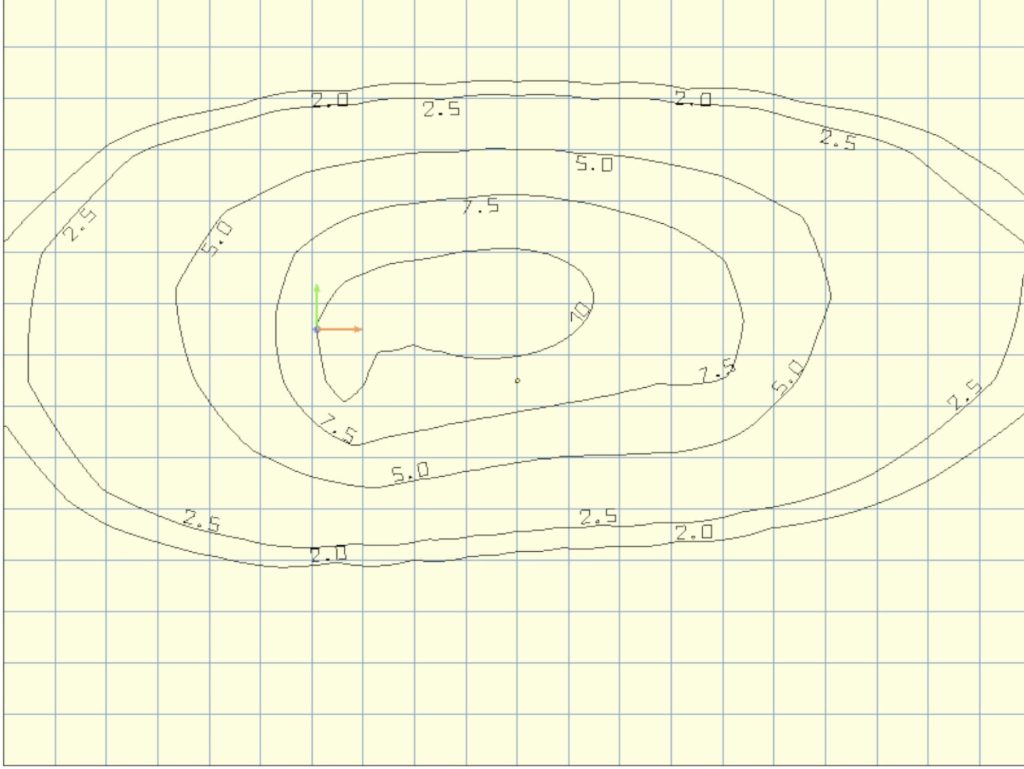

LED LUX ISO LINES

Grid at 1 meter intervals

4m height

5m height

6m height

Performance (Mackay QLD)

Below is a daily performance report for this light. For this report the location is set to Mackay in Queensland,

View our calculator to see more performance reports at different locations.
