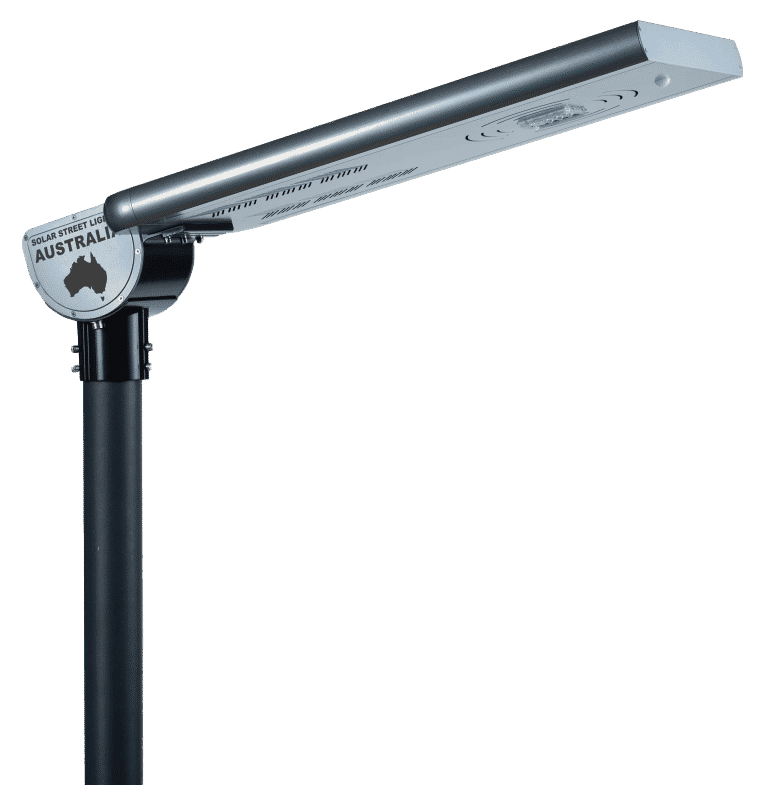

All in One Series 1: 70W | 30AH Lithium LiFeP04 | 3 - 20W LED - Solar Street Light

Q: What is the biggest problem of all in one street light?

The LED is too powerful for the battery and solar panel size.

We have designed an all in one solar street light that has a big battery and solar panel that will outperform many competitors products.

  • 30 Ah LifeP04 Lithium Battery
  • 70W Solar panel
  • Auto Dimming LED with motion sensor
  • 0° - 20° Tilt Angle
all in one solar street light
Previous slide
Next slide

Specifications

Solar Panel Specifications
Solar Panel
70W / 18V / 3.89A​

Type

Monocrystalline

Cell Efficiency

0.2
Operating Temperature
-40~50˚C
Hail Load
(60m/s (200kg / m2)
Tilt Range
0° – 90°
LED Specification
LED Chip
Samsung
Beam Angle
Type II
Total Lumens
360lm – 3600lm
Light Source
3W – 30W
Light Efficiency (Flux)
120lm/W
Max Lux at 4 Meters
25 lux
Colour Temperature
3,700k – 5,200k
IP Rating
IP65
CRI
80
Life
> 50,000 hours
Movement Sensor
Infrared
Battery Specifications
Lithium LiFePO4 Battery Size (12.8V)
30AH / 384 WH
Work Time – Bright Mode
40 Hours @ 9.5W
Average Battery Charge at Dawn
69%
Battery Charge Time 0-100%
5 Hours
Charging Temperature
0~45˚C
Discharging Temperature
-10~60˚C
Storage Temperature < 1 Year
-20~25˚C
Physical Specifications
Solar System Housing
Aluminium
Solar Panel Package Size
1050 x 590 x 140 mm
Solar System Size
990 x 495 x 120 mm
Top Spigot Pole Size
60 mm
Total Weight
16.3 KG
Pole
Hot Dipped Galvanised
Pole Height
Up to 6,500 mm
Pole OD
90 mm
Single Arm Length
300 – 500 mm
Single Arm OD Spigot
50 mm
Luminaire Distance from Ground
3,000 – 6,000 mm
Pole Footings
450 x 450 x 1000 mm Rag Bolt with Lowerable Hinge
