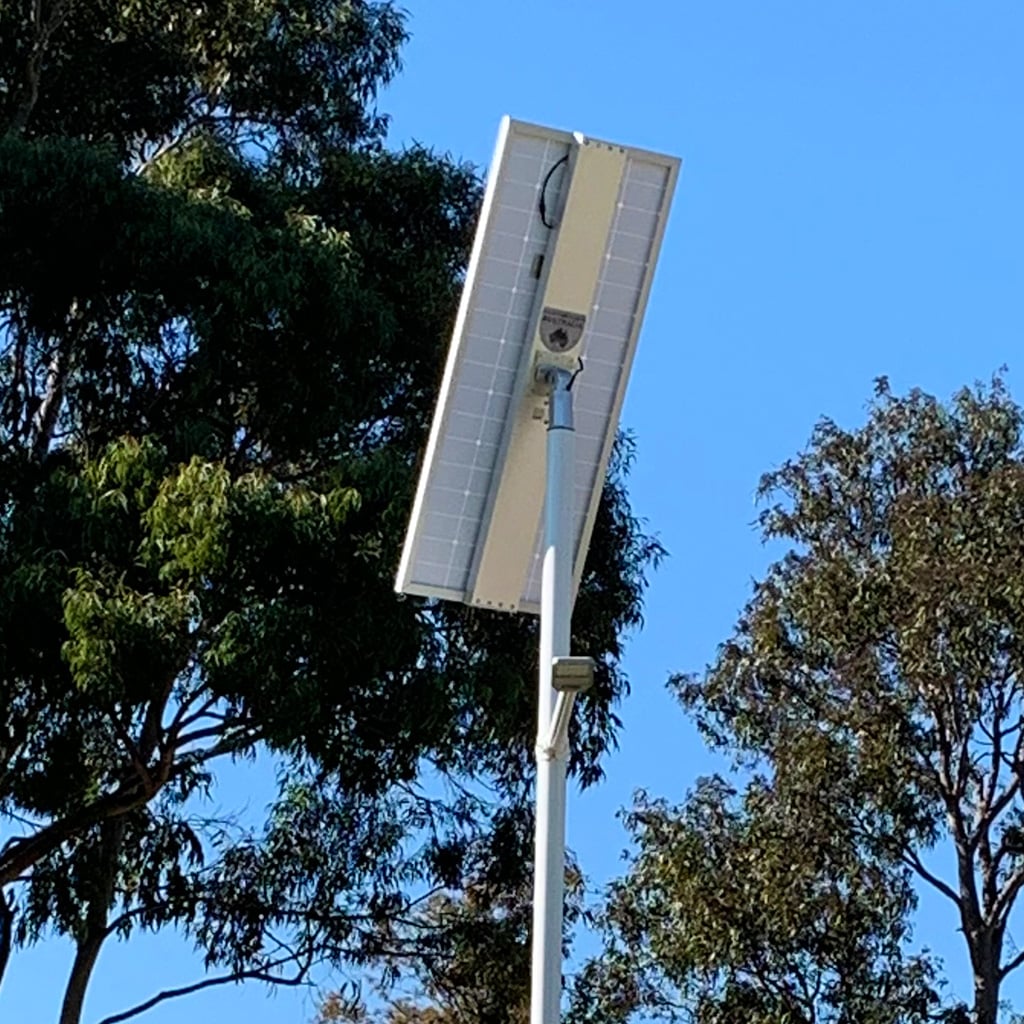

SINGLE ARM SERIES 160W | 60AH LiFePO4 | 20W LED - Solar Street Light
Our Solar Street Lights are built in Australia. They are built Tough with die cast aluminium and 316 marine grade stainless steel. They will never rust and keep on working.
Our high quality solar street lights are designed to last 20 years. We never run the battery flat and they can stay on 24 hours / 7 days a week, 365 days a year. Because of that they don’t require a motion sensor, however we can add a motion sensor as an option.

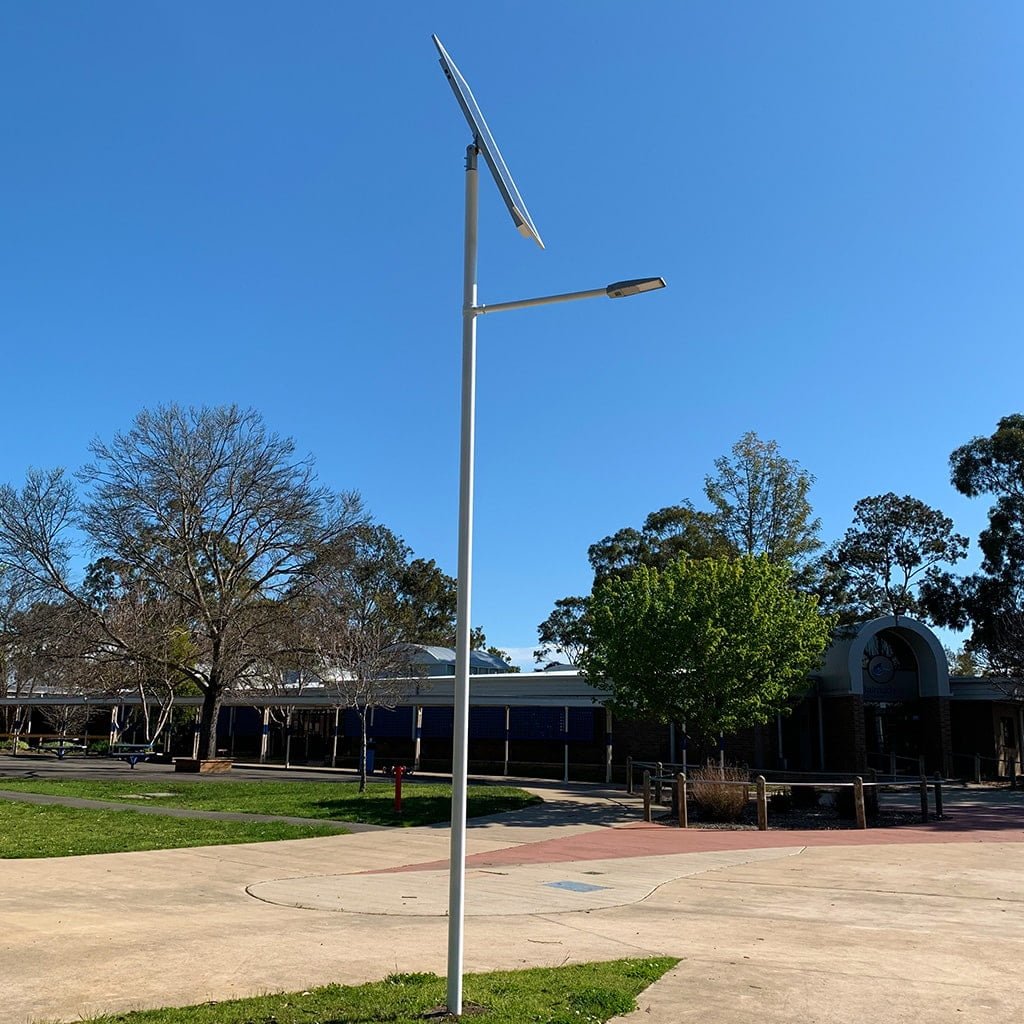

This solar light weighs 31kg + 1.6kg for the luminaire. It can fit on a light to medium duty pole. We have added the single arm light head that is found on most street lights in Australia.
Specifications
- 160W Solar Panel
- 60AH (768Wh) LiFePO4 Lithium Battery
- MPPT controller

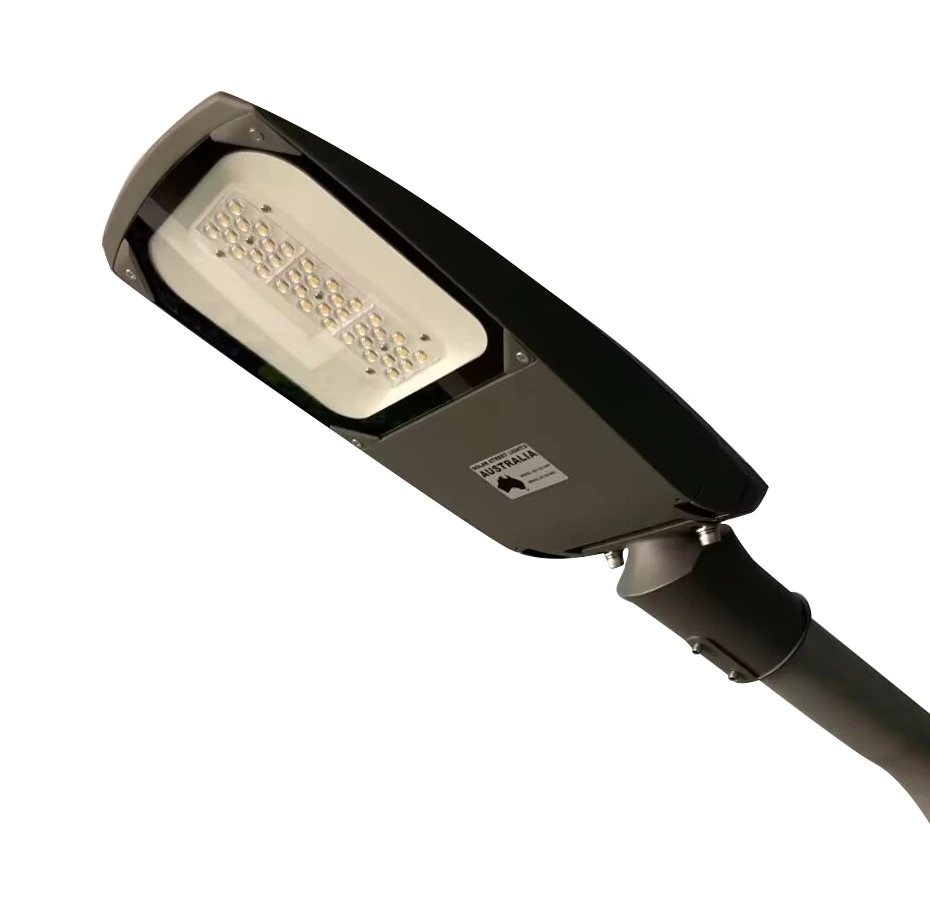

- Support up to 20w LED luminaire
- P4 / P5 Lighting categories
- Support for Sylvania StreetLED MK2 17W reduced RRW
- Support for Aldridge PLED.II.14W (17W)
Upgrades
- 200W Solar Panel
- Support up to 24W Luminaire with 200W panel (depending on location)
- Support for Aldridge PLED.II.20W (24W)
- 30w luminaire with time diming
- Movement Sensor Option
- Cut Off visor (Aeroscreen)
- Glare shield visor (rear only)
- Pathway visor (front and rear)
- Glare shield 360 visor
Previous
Next

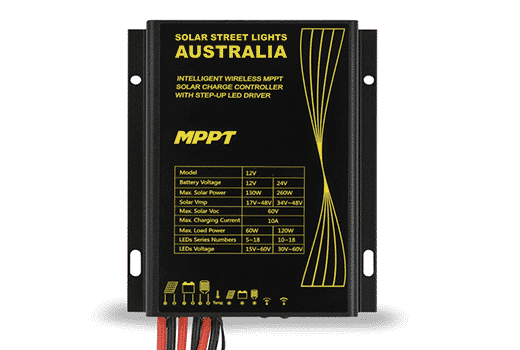

MPPT Controller
For our products, we use an MPPT Controller. This allows us to utilise 100% of the available power from our 160W Solar Panel.
if we were to use a standard PWM controller we would utilise only 64.8% of the available power of the 160W Solar Panel.
MPPT Controller
By using an MPPT Controller we are able utilise 100% of the available power from our Solar Panel.
Adjustable Brightness
We can adjust the brightness to conserve energy when there is low activity
Aluminium Housing

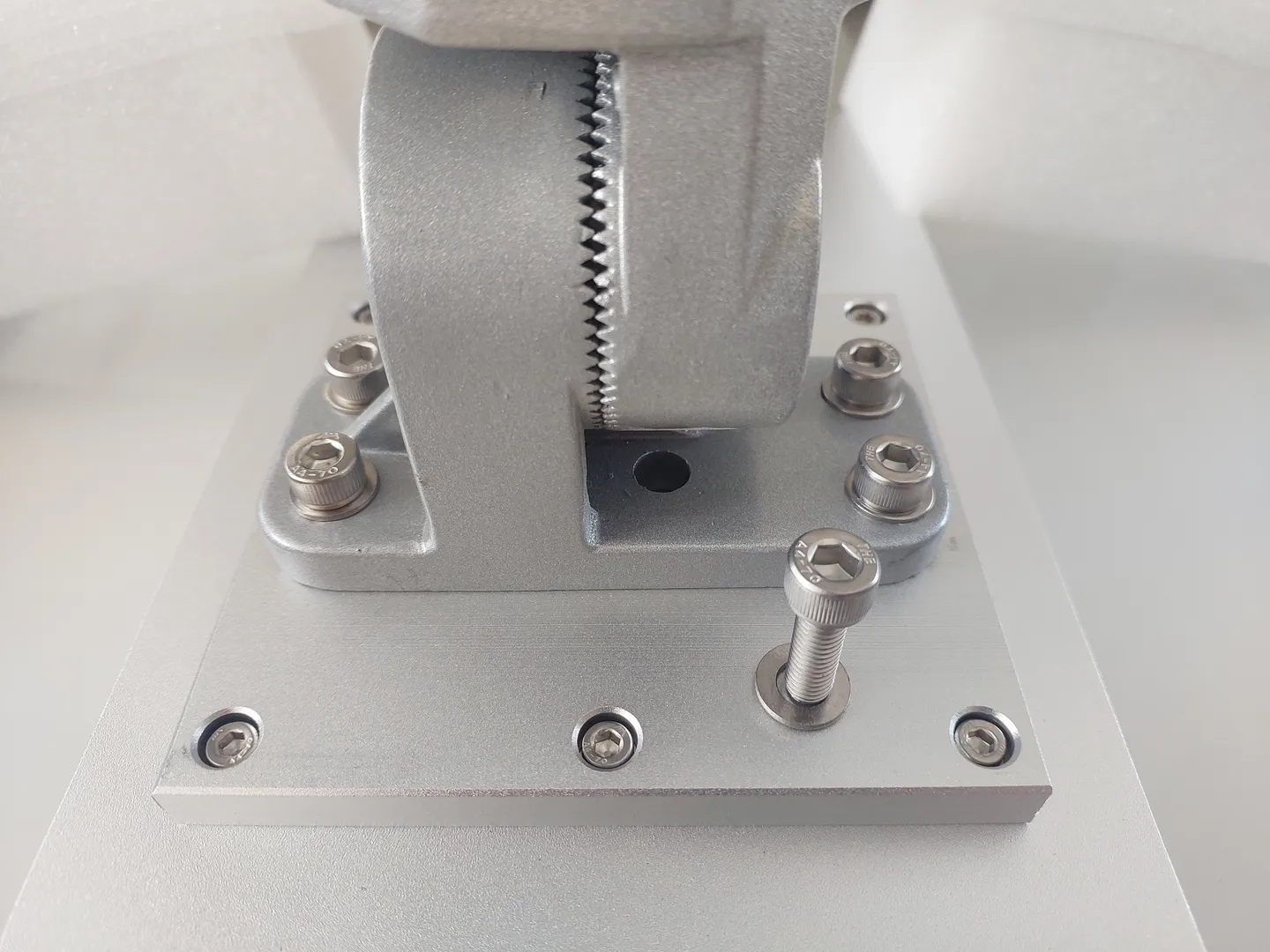

All our Solar Lights are encased in aluminium and 316 marine grade stainless steel screws
3 Year Warranty
All our Solar Lights come with a 3 year warranty
Specifications
| Solar Panel Specification | |
|---|---|
| Solar Panel | 160W / 36V / 3.89A |
| Type | Monocrystalline |
| Cell Efficiency | 0.2 |
| Operating Temperature | -40~50˚C |
| Hail Load | (60m/s (200kg / m2) |
| Tilt Range | 0° - 90° |

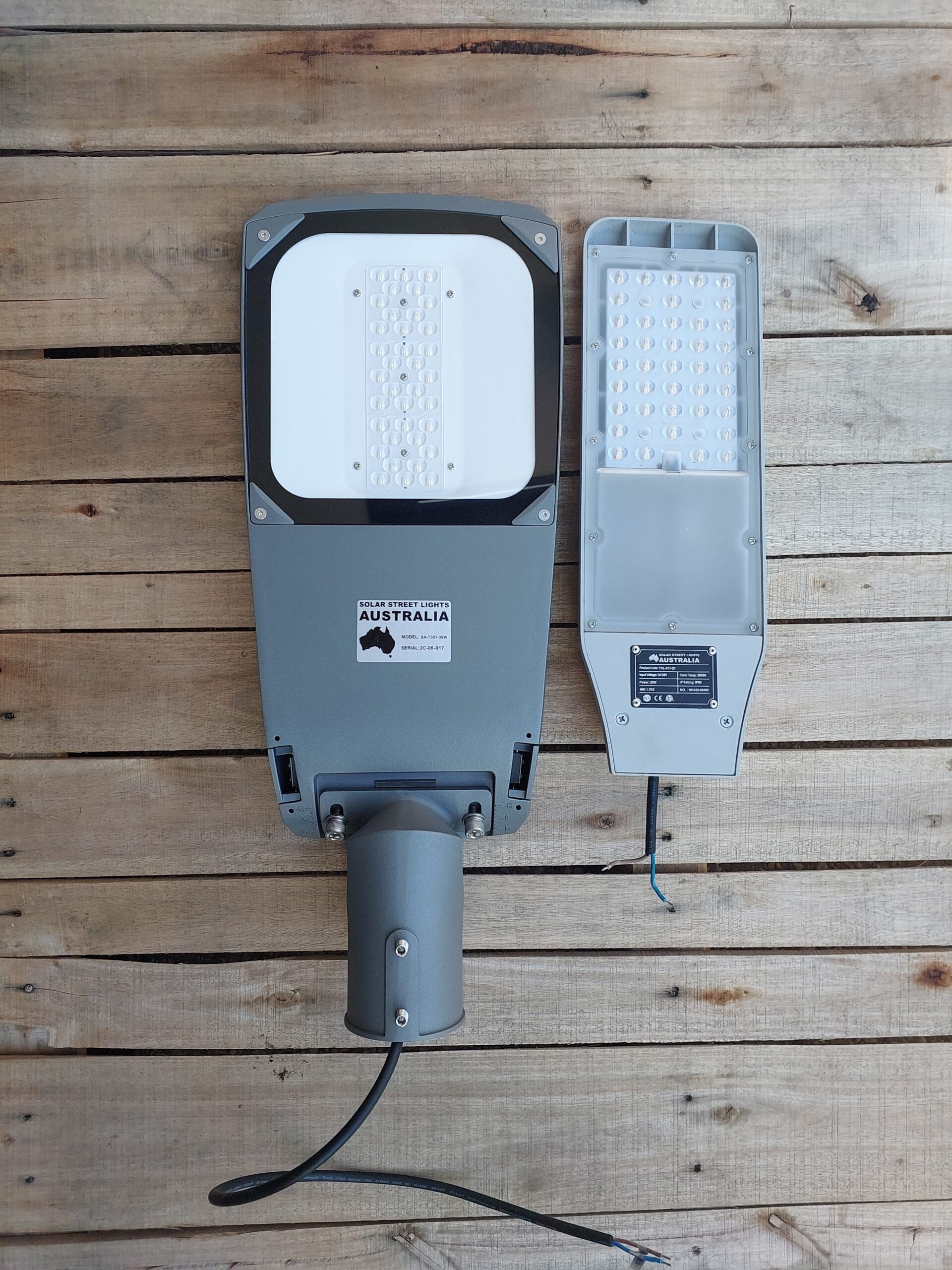

| LED Specification | |
|---|---|
| LED Chip | Nichia |
| Beam Angle | 55° x 145° Asymmetrical |
| Total Lumens | 2562 lm |
| Light Source | 20.5W |
| Input Voltage | DC 30V @ 0.66A |
| Light Efficiency (Flux) | 125lm/W |
| Max Lux at 4 Meters | 40 lux |
| Max Lux at 5 Meters | 25 lux |
| Max Lux at 5.5 Meters | 20 Lux |
| Colour Temperature | 3000k - 4000k |
| IP Rating | IP65 |
| CRI | 80 |
| Life | > 50,000 hours |
| Movement Sensor | Optional - Infrared / Microwave |
| Package Dimensions | 180 x 440 x 135 mm |
| Package Weight | 2.1 Kg |
| Physical Dimensions | 120 x 350 x 70 mm |
| Package Weight | 1.6 Kg |
| Diameter For Side Entry | 55 mm, best fit for 48 mm spigot |
| Battery Specification | |
|---|---|
| Lithium LiFePO4 Battery Size (12.8V) | 60AH / 768 WH |
| Work Time - Bright Mode | 40 Hours @ 9.5W |
| Average Battery Charge at Dawn | 69% |
| Battery Charge Time 0-100% | 5 Hours |
| Charging Temperature | 0~45˚C |
| Discharging Temperature | -10~60˚C |
| Storage Temperature < 1 Year | -20~25˚C |
| Solar System - Physical Specification | |
|---|---|
| Solar System Housing | Aluminium |
| Package Dimensions | 1550 x 750 x 180 mm |
| Package Gross Weight | 33 KG |
| Physical Dimensions | 1490 x 660 x 120 mm |
| Physical Net Weight | 31 Kg |
| To Fit Pole Size | 60 mm |
| Pole | Hot Dipped Galvanised |
| Pole Height | 6,000 mm (Can be cut shorter or made longer) |
| Pole OD | 90 mm |
| Single Arm Length | 300 - 500mm |
| Single Arm OD Spigot | 48 - 50 mm |
| Luminaire Distance from Ground | 5,500 mm, or customised |
| Pole Footings | 450 x 450 x 1000 mm Rag Bolt with Lowerable Hinge |
Australian
You can rest assured that you'll be getting the best service from your local Australian provider
Lithium Battery
Once our batteries charge for the day, we let them rest until sundown.
Designed To Last
With Solar Street Lights Australia, you can expect that they will last for over 20 years

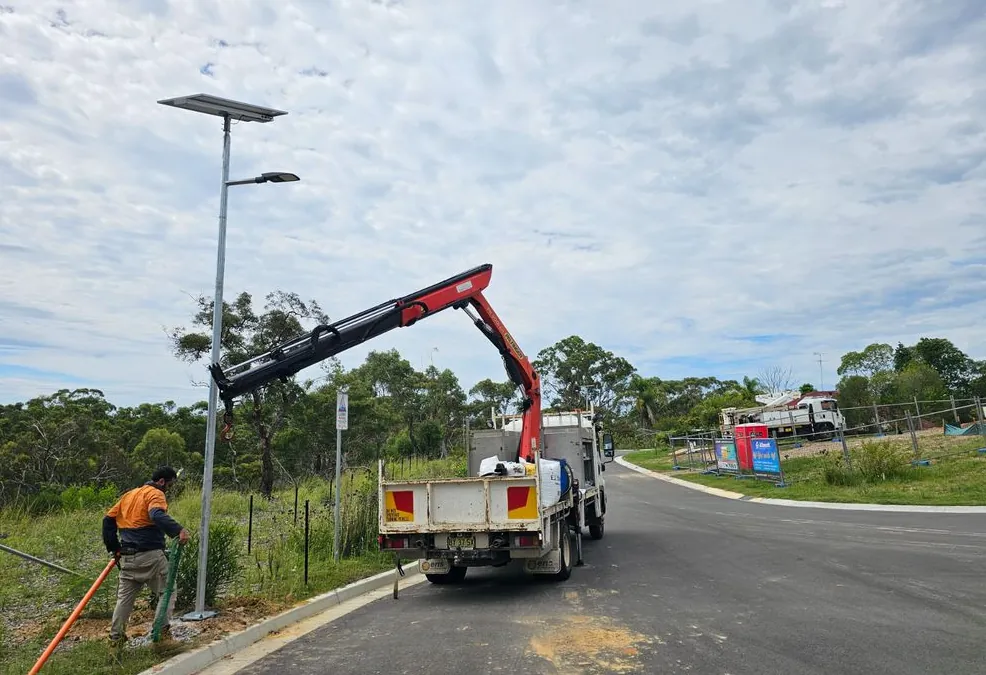

Easy Installation
For customer convenience, our solar street lights are easy to install.
LED LUX ISO LINES
Grid at 1 meter intervals
20 W LED

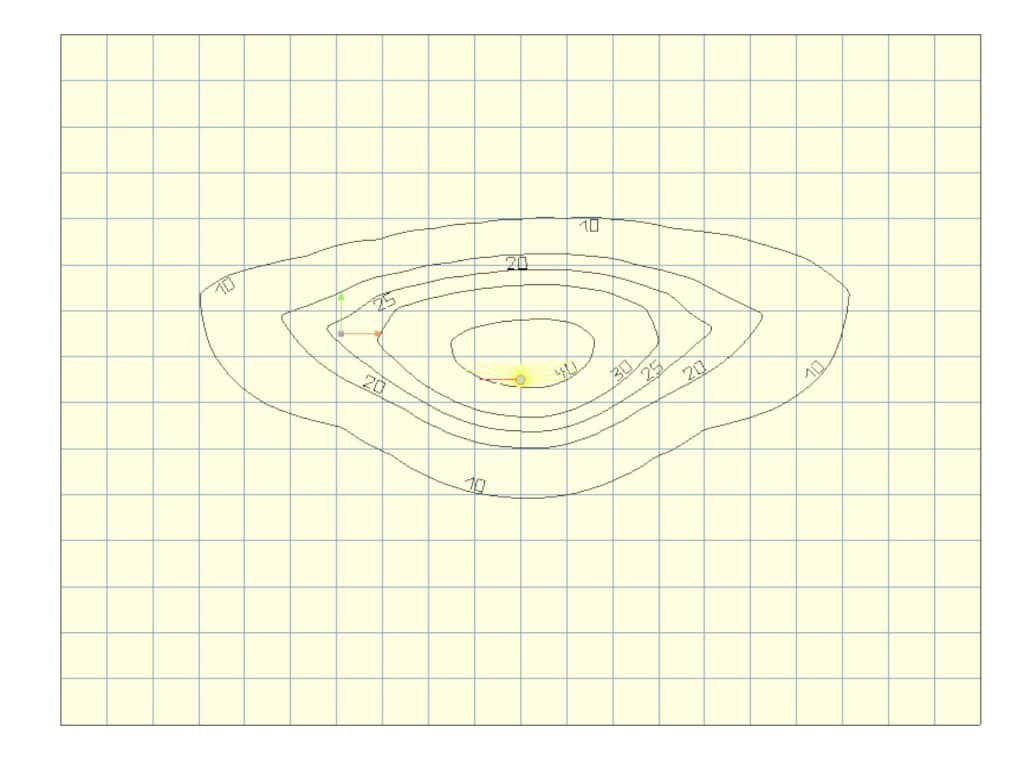

4 Meters Height
5 Meters Height

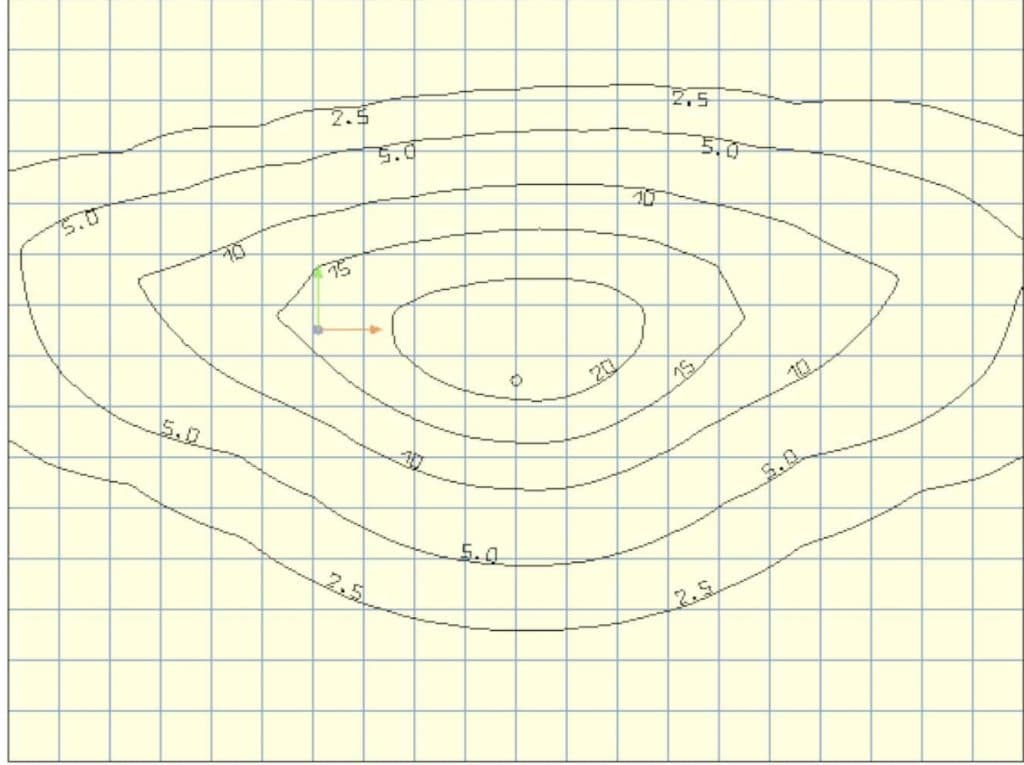

5.5 Meters Height
With an impressive 2562Lm, using Dialux we can see that this light is compliant for P4 roads.
At 5.5m light center height we can achieve P4 lighting with a pole distance of 21 meters. The Light overhang is at 0 meters which is good to reducing pole costs.
At 6m light center height we can achieve P4 lighting with a pole distance of 30 meters. The Light overhang is at 2 meters which will increase the pole production cost.
P4 Lighting Category Roads
Generally for P4 lighting category for local roads the minimum luminaire height is 5.5m. The pole spacing > 19m
Information gathered from Horizon Power, Western Australia (page 19 of 26)
Depending on which part of Australia, the height can be from 5m to 7.5m
| Lighting Category | Minimum Pole height (m) | |
|---|---|---|
| Local Roads – includes Access Streets, Places and Lanes | P4 | 5.5m |
P4 Class Roads Luminaire Options
There are many luminaires with many different configurations.
For Victoria there is Aldridge PLED.II.14W (17W) & Aldridge PLED.II.20W (24W)
For New South Wales there is Sylvania StreetLED MK2 17W reduced RRW
According to Street Lights by Ausgrid, Sydney, Hunter Valley, NSW, page 25 of their NS119: Public Lighting Design and Construction
Mounting height in situations where this luminaire is used should be kept as low as possible to a minimum of 5.0m (where the light is installed over a road), however this is dependent on the spacing of the street lights. The table below should be used as a guide to the installation mounting height.
| Maximum Spacing for different Roadway Reserve Widths (m) – Category P5 | ||||
|---|---|---|---|---|
| Mounting Height (MH) (m) – 0 degree upcast | Roadway Reserve Width (RRW) (m) | |||
| 6 | 8 | 10 | 12 | |
| 5.0 | 75 | 71 | 64 | 35 |
| 5.5 | 79 | 76 | 70 | 41 |
| 6.0 | 82 | 80 | 76 | 49 |
| 6.5 | 86 | 84 | 81 | 58 |
| 7.0 | 89 | 88 | 85 | 77 |
| 7.5 | 92 | 91 | 89 | 82 |
As an example, if there are street lights installed on every pole on a street with a 12m RRW (Roadway Reserve Width) it would be possible to install the street light at a mounting height of 5.0m assuming pole spacings of approximately 35m. Where there are lights on every second pole on the same roadway configuration, the streetlight would need to be installed at 7.0m or above to achieve compliance.
Queensland Government & TMR guidelines
According to the TMR guidelines and page 14 (8) of the Lighting – Department of Transport and Main Roads
Alternatively, where there is no local mains power supply economically available at the site, an approved standalone solar powered luminaire installation may be used. The system must have a minimum four nights’ autonomy based on the longest dark hours in winter for the specific region. The luminaire should have a minimum output of 2200 lms. It is recommended that a minimum 4000 K Correlated Colour Temperature be used for these low output luminaires. Mounting heights of between 8m and 10.5 m are acceptable.
Based in this information, we can use the following Aldridge PLED 23W (2465Lm) 4000k (This light is found on most Victorian roads)
If I enter this information into the Mackay Solar Street Light Calculator. It shows that it can last all year with an average % charge at dawn 63.92% and a minimum of 20.69% during December
We can increase performance by increasing the solar panel size
Solar Street Light Calculator
Performance (Mackay QLD)
Below is a daily performance report for this light. For this report the location is set to Mackay in Queensland,
View our calculator to see more performance reports at different locations.
Note this calculator is using the specifications of the 80W single arm series. The battery % at dawn is the same because the 160W system is exactly double the capacity.
